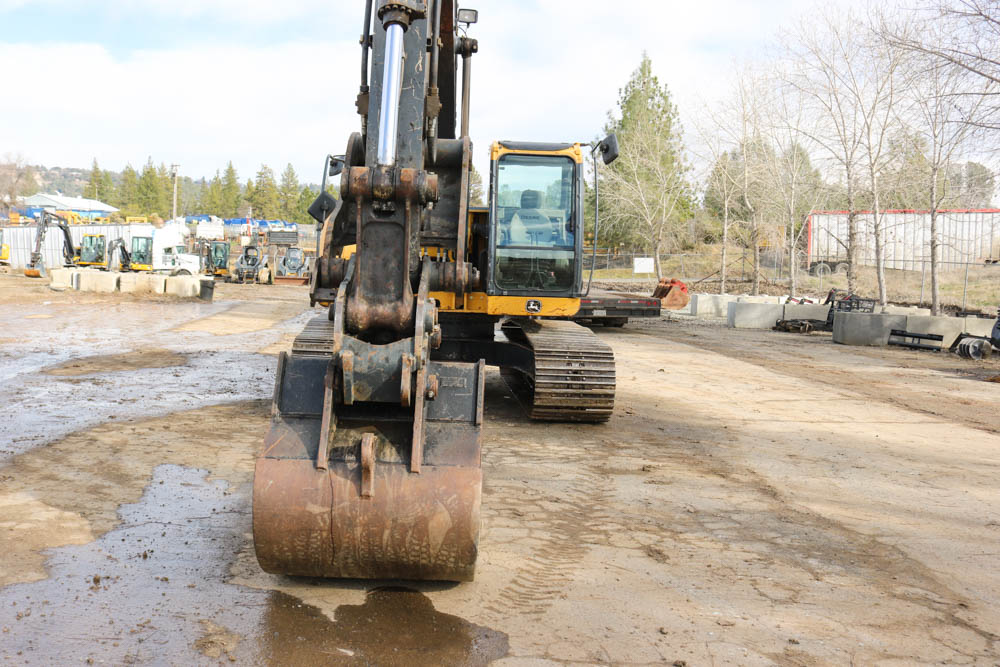

2012 DEERE 225D LC EXCAVATOR

Price $115,900

Call Today: 916.933.6050

Short Description

2012 DEERE 225D LC EXCAVATOR

PROFESSIONALLY MAINTAINED SINCE NEW. READY TO GO TO WORK.

FEATURES:

HEAT/AC
AM/FM RADIO
HYDRAULIC THUMB
TIER 3 ISUZU ENGINE
31″ PADS
ZERO SWING
HYDRAULIC Q/C

Category: Excavators

Long Description

Description

2012 DEERE 225D LC EXCAVATOR

2012 DEERE 225D LC EXCAVATOR WITH 4800 FRAME HOURS! JUST INSTALLED A BRAND NEW ISUZU COMPLETE FACTORY ENGINE WITH A 1 YEAR DEERE WARRANTY.(COSTS OVER $30K FROM DEERE) UNIT IS EQUIPPED WITH A DROMONE HYDRAULIC QUICK COUPLER, HYDRAULIC THUMB, AUX HYD, AND A TIER 3 ISUZU ENGINE. UNIT HAS JUST BEEN SERVICED AND READY TO WORK. COMES WITH 36″ BUCKET.

DEERE 225D LC SPECFACATIONS:

A. Shipping Length of Unit	32 ft in	9740 mm
C. Shipping Height of Unit	10.5 ft in	3200 mm
I. Max Cutting Height	34.7 ft in	10560 mm
J. Max Loading Height	25.1 ft in	7640 mm
K. Max Reach Along Ground	30.6 ft in	9320 mm
L. Max Vertical Wall Digging Depth	17.2 ft in	5230 mm
M. Max Digging Depth	20.4 ft in	6210 mm
A. Shipping Length of Unit	31.6 ft in	9620 mm
C. Shipping Height of Unit	9.8 ft in	2980 mm
I. Max Cutting Height	36 ft in	10980 mm
J. Max Loading Height	26.4 ft in	8050 mm
K. Max Reach Along Ground	32.3 ft in	9830 mm
L. Max Vertical Wall Digging Depth	19.4 ft in	5920 mm
M. Max Digging Depth	22 ft in	6700 mm
Dimensions
B. Width to Outside of Tracks	10.5 ft in	3200 mm
D. Length of Track on Ground	12 ft in	3660 mm
E. Ground Clearance	1.5 ft in	450 mm
G. Height to Top of Cab	9.8 ft in	2950 mm
H. Tail Swing Radius	5.5 ft in	1680 mm
O. Counterweight Clearance	3.2 ft in	975 mm
Undercarriage
F. Track Gauge	9.2 ft in	2790 mm
N. Shoe Size	32 in	800 mm

Specification

Engine
Make	Isuzu
Model	AI-4HK1XYSA-02
Net Power	159 hp	119 kw
Power Measured @	2000 rpm
Displacement	325 cu in	5.2 L
Aspiration	Turbocharged and intercooled
Number of Cylinders	4
Operational
Operating Weight	53936 lb	24465 kg
Fuel Capacity	84.5 gal	320 L
Cooling System Fluid Capacity	6.9 gal	26 L
Hydrauilc System Fluid Capacity	60.8 gal	230 L
Engine Oil Capacity	6.1 gal	23 L
Swing Drive Fluid Capacity	1.8 gal	6.9 L
Operating Voltage	24 V
Alternator Supplied Amperage	50 amps
Hydraulic System Relief Valve Pressure	4980 psi	34336 kPa
Hydraulic Pump Flow Capacity	112 gal/min	424 L/min
Swing Mechanism
Swing Speed	13.3 rpm
Swing Torque	50662 lb ft	68900 Nm
Undercarriage
Number of Shoes per Side	49
Shoe Size	32 in	800 mm
Number of Carrier Rollers per Side	2
Number of Track Rollers per Side	8
Ground Pressure	5.5 psi	38 kPa
Max Travel Speed	3.4 mph	5.5 km/h
Drawbar Pull	45636 lb	203 kN
Track Gauge	9.2 ft in	2790 mm
Buckets
Reference Bucket Capacity	1.1 yd3	0.83 m3
Minimum Bucket Capacity	0.78 yd3	0.6 m3
Maximum Bucket Capacity	1.4 yd3	1.1 m3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1	Arm Length 7ft. 11in. 2.42m
Shipping Height of Unit	10.5 ft in	3200 mm
Shipping Length of Unit	32 ft in	9740 mm
Max Digging Depth	20.4 ft in	6210 mm
Max Reach Along Ground	30.6 ft in	9320 mm
Max Cutting Height	34.7 ft in	10560 mm
Max Loading Height	25.1 ft in	7640 mm
Max Vertical Wall Digging Depth	17.2 ft in	5230 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2	Arm Length 9ft.7in. 2.91m
Shipping Height of Unit	9.8 ft in	2980 mm
Shipping Length of Unit	31.6 ft in	9620 mm
Max Digging Depth	22 ft in	6700 mm
Max Reach Along Ground	32.3 ft in	9830 mm
Max Cutting Height	36 ft in	10980 mm
Max Loading Height	26.4 ft in	8050 mm
Max Vertical Wall Digging Depth	19.4 ft in	5920 mm
Dimensions
Width to Outside of Tracks	10.5 ft in	3200 mm
Height to Top of Cab	9.8 ft in	2950 mm
Ground Clearance	1.5 ft in	450 mm
Counterweight Clearance	3.2 ft in	975 mm
Tail Swing Radius	5.5 ft in	1680 mm
Length of Track on Ground	12 ft in	3660 mm
