2005 Case CX75 SR Crawler Excavator(sold)

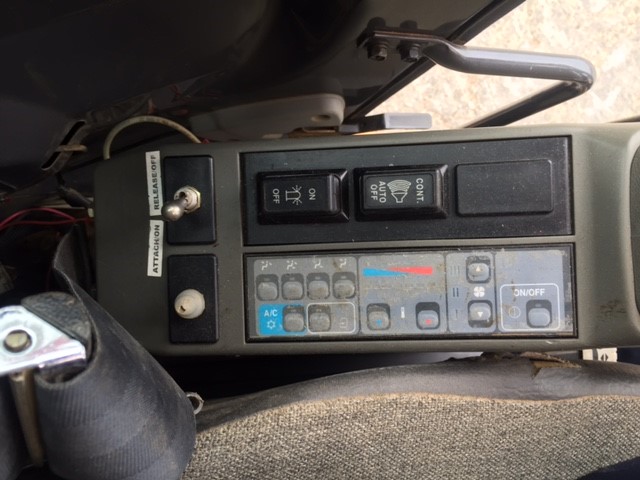

2005 CASE CX75 SR EXCAVATOR WITH ONLY 1300 ORIGINAL HOURS ON IT! IT HAS A CAB WITH HEAT/AC, OFFSET BOOM, 94″ BACKFILL BLADE, 54HP ISUZU ENGINE, JOYSTICK CONTROLS, 24″ BUCKET, UC IS AT 85%, ONE OWNER UNIT AND PROFESSIONALLY MAINTAINED.

Location: Placerville, CA

Hours: 1,348

Price: $37,999

A. SHIPPING LENGTH OF UNIT 19.4 ft in 5920 mm
C. SHIPPING HEIGHT OF UNIT 8.9 ft in 2700 mm
I. MAX CUTTING HEIGHT 24.1 ft in 7330 mm
J. MAX LOADING HEIGHT 17.3 ft in 5250 mm
K. MAX REACH ALONG GROUND 21 ft in 6390 mm
L. MAX VERTICAL WALL DIGGING DEPTH 11.9 ft in 3640 mm
M. MAX DIGGING DEPTH 13.6 ft in 4140 mm
Dimensions
B. WIDTH TO OUTSIDE OF TRACKS 7.6 ft in 2320 mm
D. LENGTH OF TRACK ON GROUND 7.3 ft in 2210 mm
E. GROUND CLEARANCE 1.2 ft in 360 mm
G. HEIGHT TO TOP OF CAB 8.8 ft in 2700 mm
H. TAIL SWING RADIUS 4.1 ft in 1240 mm
O. COUNTERWEIGHT CLEARANCE 2.4 ft in 750 mm
Undercarriage
N. SHOE SIZE 17.7 in 450 mm
Specification
Engine
MAKE Isuzu
MODEL AU-4LE2X
NET POWER 54 hp 40 kw
POWER MEASURED @ 2000 rpm
DISPLACEMENT 133 cu in 2.2 L
TORQUE MEASURED @ 1500 rpm
MAX TORQUE 155 lb ft 210.2 Nm
NUMBER OF CYLINDERS 4
ASPIRATION Turbocharged
Operational
OPERATING WEIGHT 17468 lb 7919 kg
FUEL CAPACITY 26 gal 100 L
COOLING SYSTEM FLUID CAPACITY 2.7 gal 10.2 L
HYDRAUILC SYSTEM FLUID CAPACITY 26 gal 97 L
ENGINE OIL CAPACITY 2.4 gal 9 L
SWING DRIVE FLUID CAPACITY 0.58 gal 2.2 L
OPERATING VOLTAGE 12 V
ALTERNATOR SUPPLIED AMPERAGE 50 amps
HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4264 psi 204.2 kPa
HYDRAULIC PUMP FLOW CAPACITY 36 gal/min 68 L/min
Swing Mechanism
SWING SPEED 9.5 rpm
Undercarriage
NUMBER OF SHOES PER SIDE 39
SHOE SIZE 17.7 in 450 mm
NUMBER OF CARRIER ROLLERS PER SIDE 1
NUMBER OF TRACK ROLLERS PER SIDE 5
GROUND PRESSURE 5.1 psi 35.2 kPa
MAX TRAVEL SPEED 3.2 mph 5.1 km/h
DRAWBAR PULL 13331 lb 59 kN
Buckets
MINIMUM BUCKET CAPACITY 0.31 yd3 0.24 m3
MAXIMUM BUCKET CAPACITY 0.92 yd3 0.7 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 12’8″ (3870mm)/ Stick 5’7″ (1710mm)
SHIPPING HEIGHT OF UNIT 8.9 ft in 2700 mm
SHIPPING LENGTH OF UNIT 19.4 ft in 5920 mm
MAX DIGGING DEPTH 13.6 ft in 4140 mm
MAX REACH ALONG GROUND 21 ft in 6390 mm
MAX CUTTING HEIGHT 24.1 ft in 7330 mm
MAX LOADING HEIGHT 17.3 ft in 5250 mm
MAX VERTICAL WALL DIGGING DEPTH 11.9 ft in 3640 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2 Boom 12’8″ (3870mm)/ Stick 6’11” (2120mm)
SHIPPING HEIGHT OF UNIT 9.7 ft in 2950 mm
SHIPPING LENGTH OF UNIT 19.4 ft in 5910 mm
MAX DIGGING DEPTH 14.9 ft in 4540 mm
MAX REACH ALONG GROUND 22.3 ft in 6770 mm
MAX CUTTING HEIGHT 25 ft in 7620 mm
MAX LOADING HEIGHT 18.2 ft in 5540 mm
MAX VERTICAL WALL DIGGING DEPTH 13.4 ft in 4100 mm
Boom/Stick Option (HEX) 3
BOOM/STICK OPTION (HEX) 3 Boom 12’10” (3920mm)/ Stick 5’9″ (1750mm)
SHIPPING HEIGHT OF UNIT 9.7 ft in 2970 mm
SHIPPING LENGTH OF UNIT 19.6 ft in 5970 mm
MAX DIGGING DEPTH 13.8 ft in 4190 mm
MAX REACH ALONG GROUND 20.8 ft in 6360 mm
MAX CUTTING HEIGHT 23.6 ft in 7200 mm
MAX LOADING HEIGHT 16.9 ft in 5150 mm
MAX VERTICAL WALL DIGGING DEPTH 10.7 ft in 3260 mm
Dimensions
WIDTH TO OUTSIDE OF TRACKS 7.6 ft in 2320 mm
HEIGHT TO TOP OF CAB 8.8 ft in 2700 mm
GROUND CLEARANCE 1.2 ft in 360 mm
COUNTERWEIGHT CLEARANCE 2.4 ft in 750 mm
TAIL SWING RADIUS 4.1 ft in 1240 mm
LENGTH OF TRACK ON GROUND 7.3 ft in 2210 mm
